Payload budget
Account for mounts, mission equipment and carried goods when defining the required useful load.

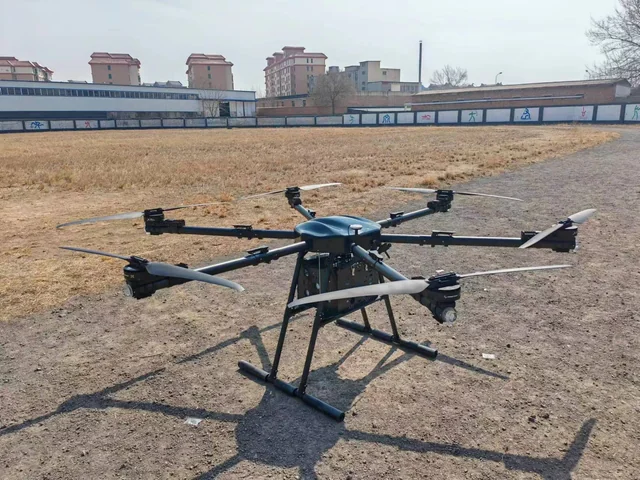

Aircraft photographs supplied with this model. Refer to the package contents for the included accessories.
HEAVY CARGO HEXACOPTER
MX3000 70 kg Cargo Drone
MX3000
A 70 kg maximum-payload hexacopter with a 2960 mm wheelbase, X13 propulsion and downward-folding arms. Compare the listed battery configurations to plan your transport package, with optional RTK and radar.
70 kgPayload class
160 kgMax. takeoff weight
Selected package priceUSD 15,680.07
Included equipment
Review the aircraft and accessories shown in the gallery and the package contents below.
Final equipment, pricing and delivery are confirmed with your quotation.
COMPARE CONFIGURATIONS
Package prices.
| Mission configuration | Package price |
|---|---|
| Standard transport package | USD 15,680.07 |
USD reference prices converted at USD 1 = CNY 6.6964 on 2026-10-13. Request a quotation to confirm equipment, shipping, taxes and the final order total. Exchange-rate reference ↗
TECHNICAL SPECIFICATIONS
The details behind the platform.
LISTED ENDURANCE20–23 min with 3 × 32,000 mAh packs; load unspecified
The supplier does not specify the payload used for these endurance figures. They are battery-configuration references, not confirmed flight times at maximum payload. Weather, battery condition and flight profile affect actual endurance.
Airframe & payload
| Model | MX3000 |
|---|---|
| Airframe materials | Carbon fibre and aluminium |
| Rotor layout | X6 · hexacopter · 6 rotors |
| Wheelbase | 2960 mm |
| Aircraft weight, supplier-listed | 42 kg |
| Maximum payload | 70 kg |
| Maximum takeoff weight | 160 kg |
| Folding design | Downward-folding arms |
| Propeller diameter | 56 in · folding propellers |
| Propulsion system | X13 |
Battery configurations & listed endurance
| 3 × 18S 32,000 mAh solid-state | 20–23 min; payload not specified |
|---|---|
| 2 × 18S 30,000 mAh smart batteries | 12–14 min; payload not specified |
| 3 × 18S 30,000 mAh smart batteries | 15–17 min; payload not specified |
Included power & control equipment
| Battery package | 1 complete set · 18S 32,000 mAh solid-state |
|---|---|
| Charging equipment | 1 dual-channel charger |
| Controller | MK15 · 5.5-inch high-brightness display |
| Camera | 1080p gimbal camera |
| Adapter cable | 1 included |
Flight control & navigation
| Flight-control system | Dual IMU · backup GNSS |
|---|---|
| Satellite navigation | BeiDou / GPS / Galileo / GLONASS |
| Flight modes | Manual · intelligent · automatic |
| Position & altitude hold | Automatic position hold, altitude hold and hovering |
| Route functions | Autonomous route planning · A/B point memory |
| Return functions | Automatic return · signal-loss return · low-voltage return |
| Ground station & video | Ground-station support and video transmission |
| Attitude angle | 15°–25° |
| Night equipment | Night flight lights |
Operating references & optional equipment
| Flight speed | 1–12 m/s |
|---|---|
| Listed flight radius | Up to 5 km; confirm the configured link and operating conditions |
| Listed flight altitude | Up to 5,000 m; reference datum and load conditions to be confirmed |
| Listed wind figure | 13.8 m/s; confirm takeoff, landing and load conditions |
| Listed transient airframe load | 2.5 g |
| RTK positioning | Optional |
| Obstacle-avoidance radar | Optional |
| Additional radar | Optional; radar type and function confirmed with configuration |
STANDARD CONFIGURATION
What’s in the package.
Standard package includes the equipment listed below. Final configuration is confirmed with your quotation.
- 1 × MX3000 aircraft, including MK15 controller and 1080p gimbal camera
- 1 × complete 18S 32,000 mAh solid-state battery set
- 1 × dual-channel charger
- 1 × adapter cable
PLAN THE COMPLETE MISSION
Configuration comes first.
Flight conditions
Share your route, altitude, temperature and expected flight profile to review suitability.
Development requirements
Request confirmation of firmware, interfaces and code availability if your project involves secondary development.
LET’S TALK ABOUT YOUR PROJECT
Your mission. The right configuration.
Share your payload, application and operating environment.
