CARGO TRANSPORTATION

Move the load.
Match the mission.

Compare platform classes and define the equipment needed for your cargo operation.

COMPARE BY OPERATING LOAD

Capacity is only part of the picture.

Platform comparison
Platform	Payload class	Listed endurance	Max. takeoff weight
JHY4405 ↗	1–5 kg	30 min at 3 kg payload	16.8 kg
1300 mm Hexacopter ↗	10 kg class	23 min at 5 kg payload	23.5 kg
MX630 ↗	20 kg class	≥30 min at 10 kg payload	55 kg
30 kg Cargo Drone ↗	30 kg class	≥20 min at 30 kg payload	66 kg
MX2600 ↗	50 kg	33–35 min at full load with 4 × 40,000 mAh packs	135 kg
MX3000 ↗	70 kg	20–23 min with 3 × 32,000 mAh packs; load unspecified	160 kg
NX2900 ↗	80 kg	15–20 min with 4 × 40,000 mAh packs; load unspecified	180 kg
MX3500 ↗	100 kg	15–20 min with 4 × 40,000 mAh packs; load unspecified	208 kg

Endurance figures use different payloads and should not be treated as full-load flight times. Final payload capability depends on the selected equipment and batteries.

PAYLOAD INTEGRATION

Plan beyond the aircraft.

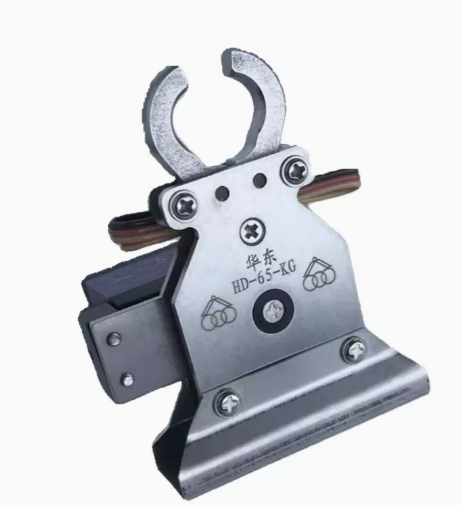

Define the cargo mass, dimensions, mounting method and delivery conditions. A release device and its mounting hardware also consume part of the available payload budget.

Request a Cargo Configuration
