Payload budget
Account for mounts, mission equipment and carried goods when defining the required useful load.
Actual aircraft and accessory photographs. The package contents list the complete included set.

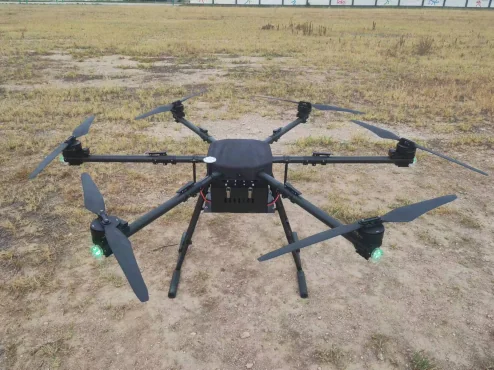

CARGO HEXACOPTER
30 kg Cargo Drone
30 kg Cargo Drone
A 1900 mm electric hexacopter for cargo transport, with dual IMUs and backup GNSS. Listed endurance is at a 30 kg payload; the supplier specifies a 20 kg standard load and a 35 kg maximum mission payload.
30 kg classPayload class
66 kgMax. takeoff weight
Selected package priceUSD 11,946.72
Included equipment
Review the aircraft and accessories shown in the gallery and the package contents below.
Final equipment, pricing and delivery are confirmed with your quotation.
COMPARE CONFIGURATIONS
Package prices.
| Mission configuration | Package price |
|---|---|
| Standard transport package | USD 11,946.72 |
USD reference prices converted at USD 1 = CNY 6.6964 on 2026-10-13. Request a quotation to confirm equipment, shipping, taxes and the final order total. Exchange-rate reference ↗
TECHNICAL SPECIFICATIONS
The details behind the platform.
LISTED ENDURANCE≥20 min at 30 kg payload
The 20-minute figure is listed with a 30 kg payload and three 14S 32,000 mAh batteries. The separate no-payload figure is more than 40 minutes. Neither figure describes endurance at the 35 kg maximum mission payload. Confirm the complete loaded takeoff weight.
Airframe & payload
| Product designation | 30 kg Cargo Drone |
|---|---|
| Power source | Electric |
| Rotor layout | Hexacopter · 6 rotors |
| Unfolded diagonal wheelbase | 1900 mm |
| Propeller diameter | 36 in |
| Payload class | 30 kg class |
| Supplier-listed standard load | 20 kg |
| Maximum mission payload | 35 kg |
| Maximum takeoff weight | 66 kg |
Flight performance & endurance
| Flight-control system | Dual IMU · backup GNSS |
|---|---|
| Maximum horizontal speed | 15 m/s |
| Maximum vertical speed | 7 m/s |
| Listed operating radius | 1–10 km; confirm route and configured link |
| Aircraft-listed control range | 5–10 km |
| Maximum relative flight height | 600 m |
| Battery configuration | 3 × 14S 32,000 mAh |
| Endurance with 30 kg payload | At least 20 min |
| Endurance without payload | More than 40 min |

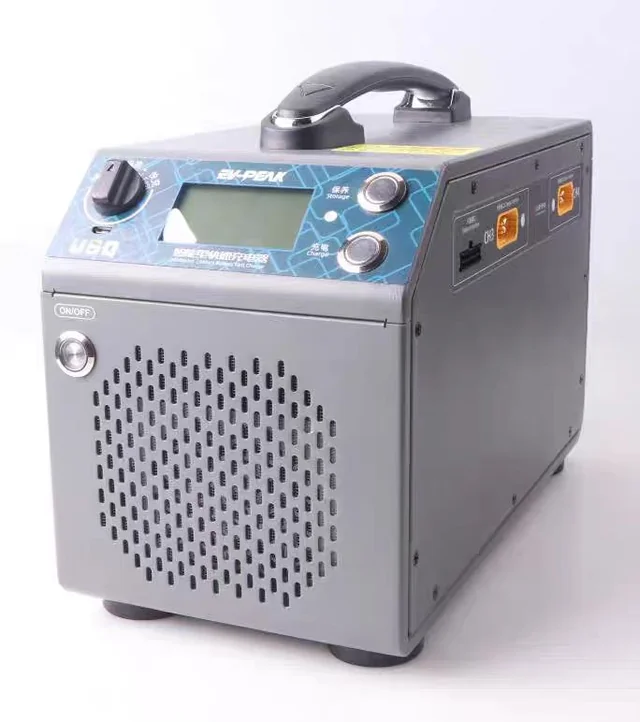

Charging station
| Input voltage | AC 110–240 V |
|---|---|
| Charging power | 3000 W |
| Charging current | 15 / 25 / 50 A |
| Discharge power | 2 × 50 W maximum |
| Listed battery-series support | 18S; confirm compatibility with the selected battery set |
| Net weight | 6.5 kg |
| Dimensions | 303.2 × 182.2 × 212.8 mm |

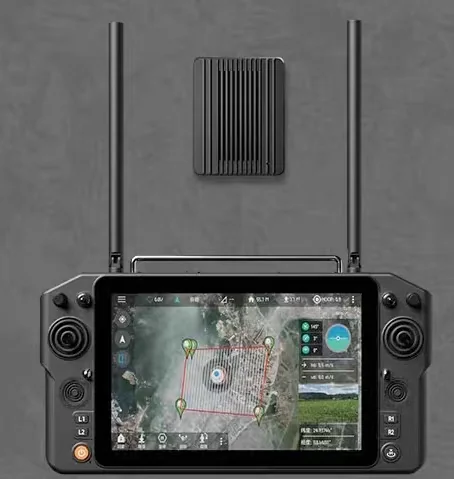

Controller
| Display | 10.1-inch industrial touchscreen · sunlight-viewable |
|---|---|
| Resolution | 1920 × 1200 |
| Touch input | 10-point capacitive |
| Listed operating time | 5 hours |
| Processor | Qualcomm 660 |
| Channels | 16 |
| RF output | 25 dBm |
| Listed frequency bands | 800 MHz / 1.4 GHz / 2.4 GHz |
| Controller-listed link range | More than 10 km; aircraft specification lists 5–10 km |
| Ethernet | 2 × RJ45 |
| Other interfaces | USB · 4G card slot · audio · HDMI · TF · USB-C |
| Controller ingress protection | IP67, supplier-listed |
| Controller operating temperature | −10°C to +55°C |
| Controller dimensions | 361 × 393.2 × 102.4 mm |
| Controller weight | 2 kg |
Aircraft operating conditions
| Operating temperature | −20°C to +50°C |
|---|---|
| Operating humidity | 90%, non-condensing |
| Wind resistance | Level 6, supplier-listed; confirm load and takeoff / landing conditions |
STANDARD CONFIGURATION
What’s in the package.
Standard package includes the equipment listed below. Final configuration is confirmed with your quotation.
- 1 × cargo hexacopter
- 1 × battery set: 3 × 14S 32,000 mAh polymer batteries
- 1 × 3000 W charging station
- 1 × controller with 10.1-inch touchscreen
PLAN THE COMPLETE MISSION
Configuration comes first.
Flight conditions
Share your route, altitude, temperature and expected flight profile to review suitability.
Development requirements
Request confirmation of firmware, interfaces and code availability if your project involves secondary development.
LET’S TALK ABOUT YOUR PROJECT
Your mission. The right configuration.
Share your payload, application and operating environment.
